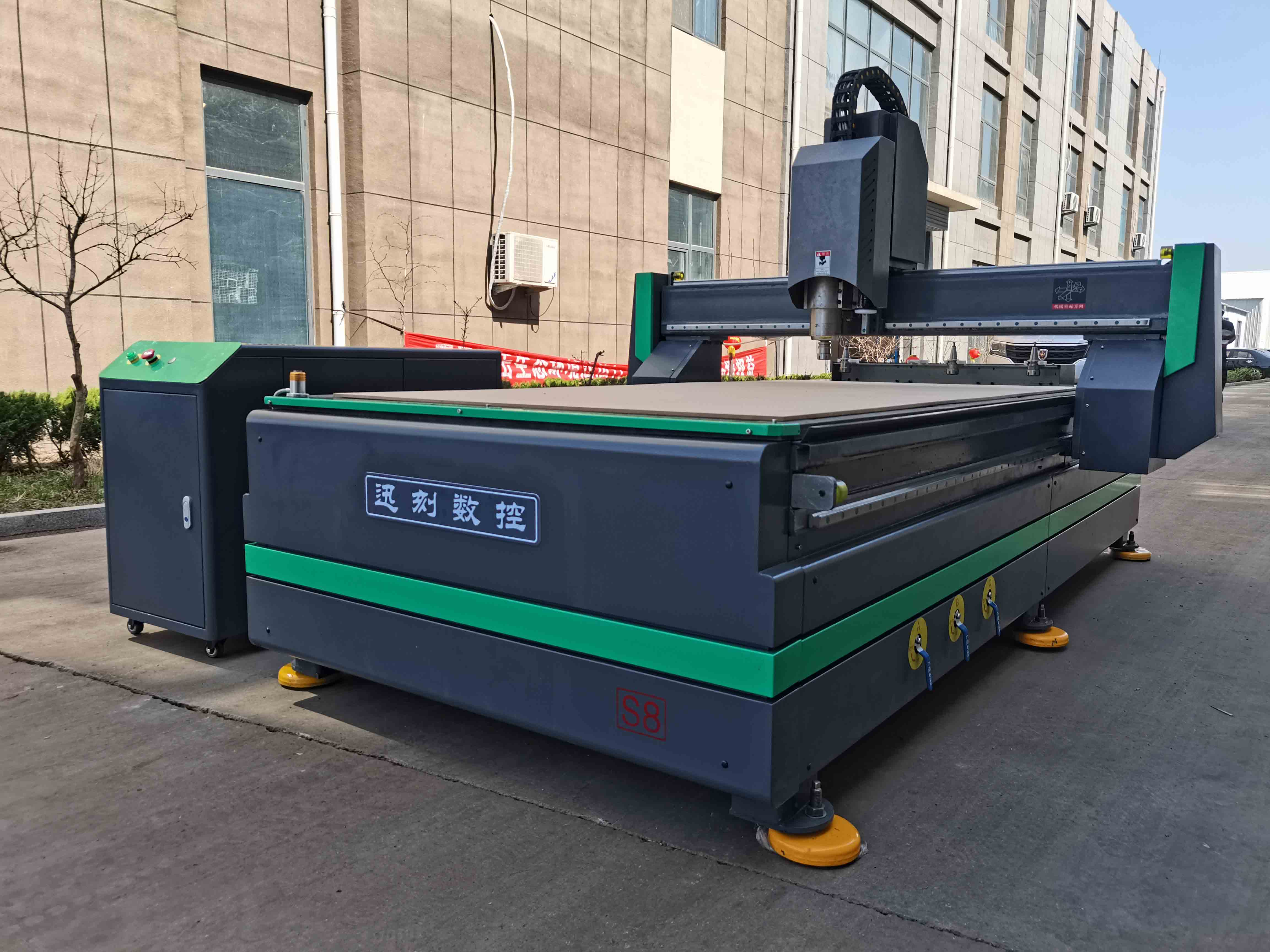

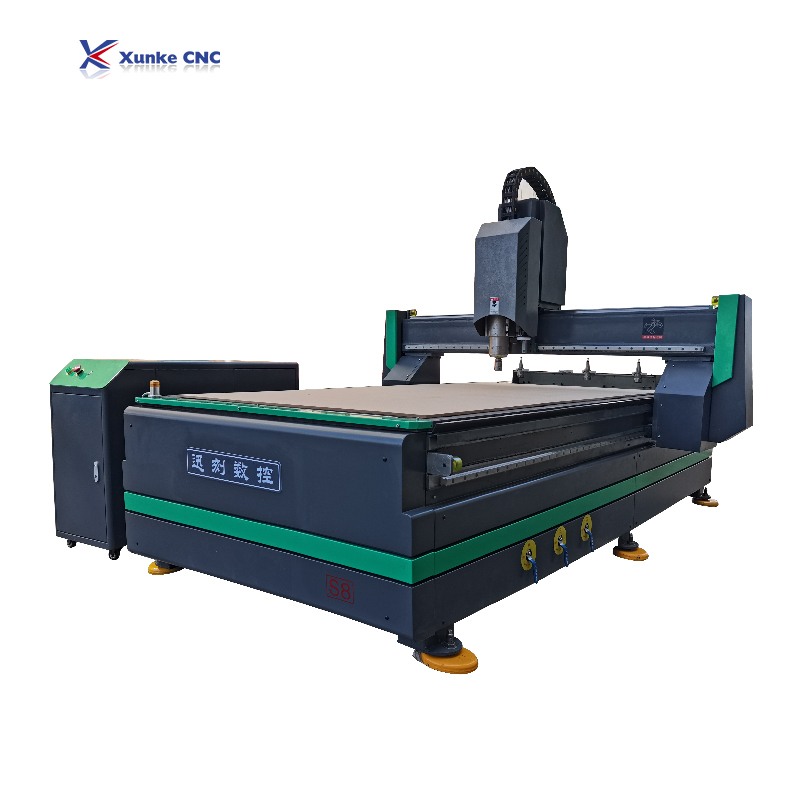

XK-S8 ATC CNC Router with multi knives

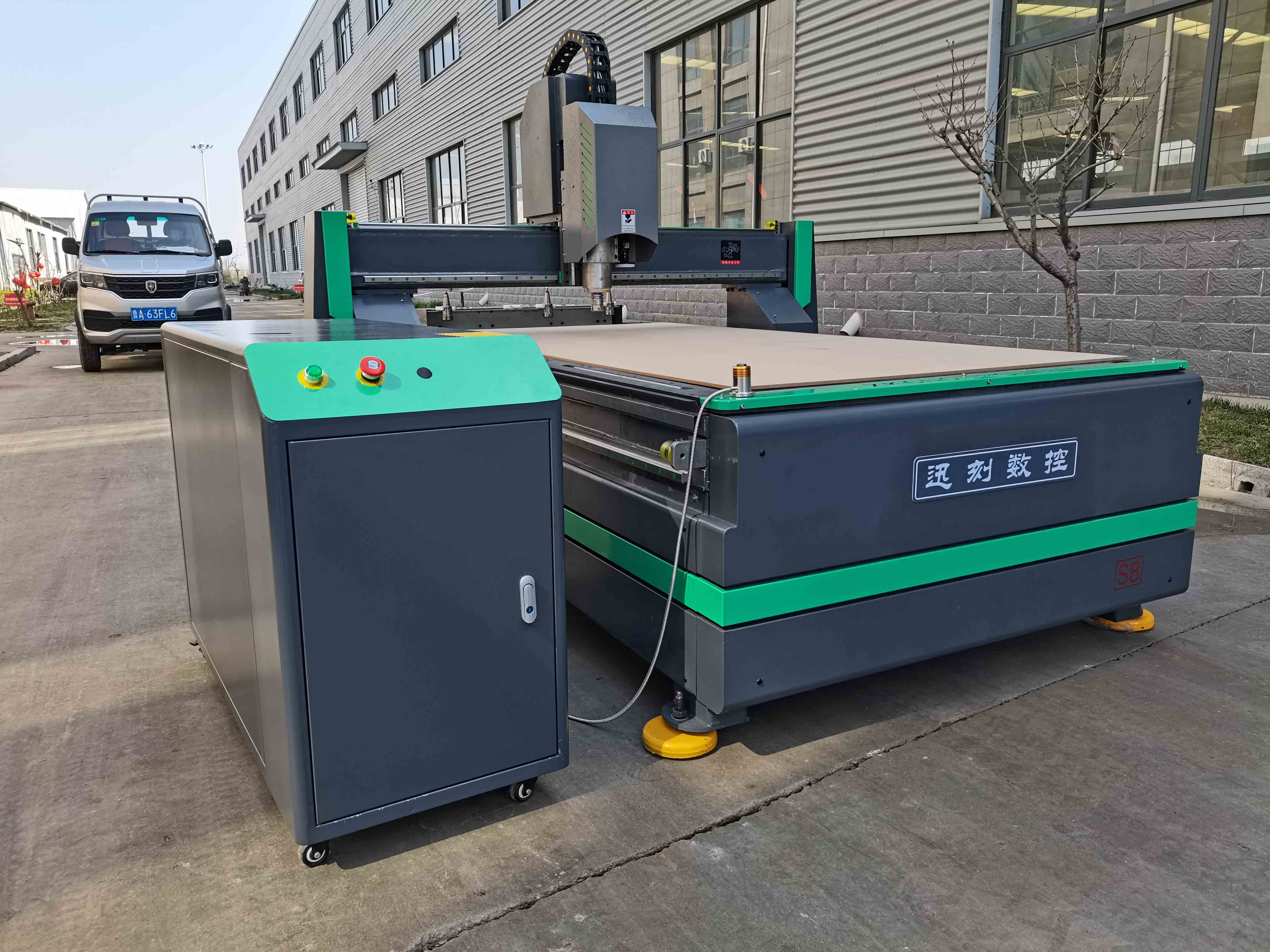

XK-S8 ATC CNC Router
1. With a linear type tool changer, this cnc wood design machine can change more than 8 tools automatically in the cnc acrylic/wood/PVC carving and engraving process.
2. With a heavy-duty frame and gantry, the machine has a stronger structure, ensuring stable and safe operation.
auto tool changer

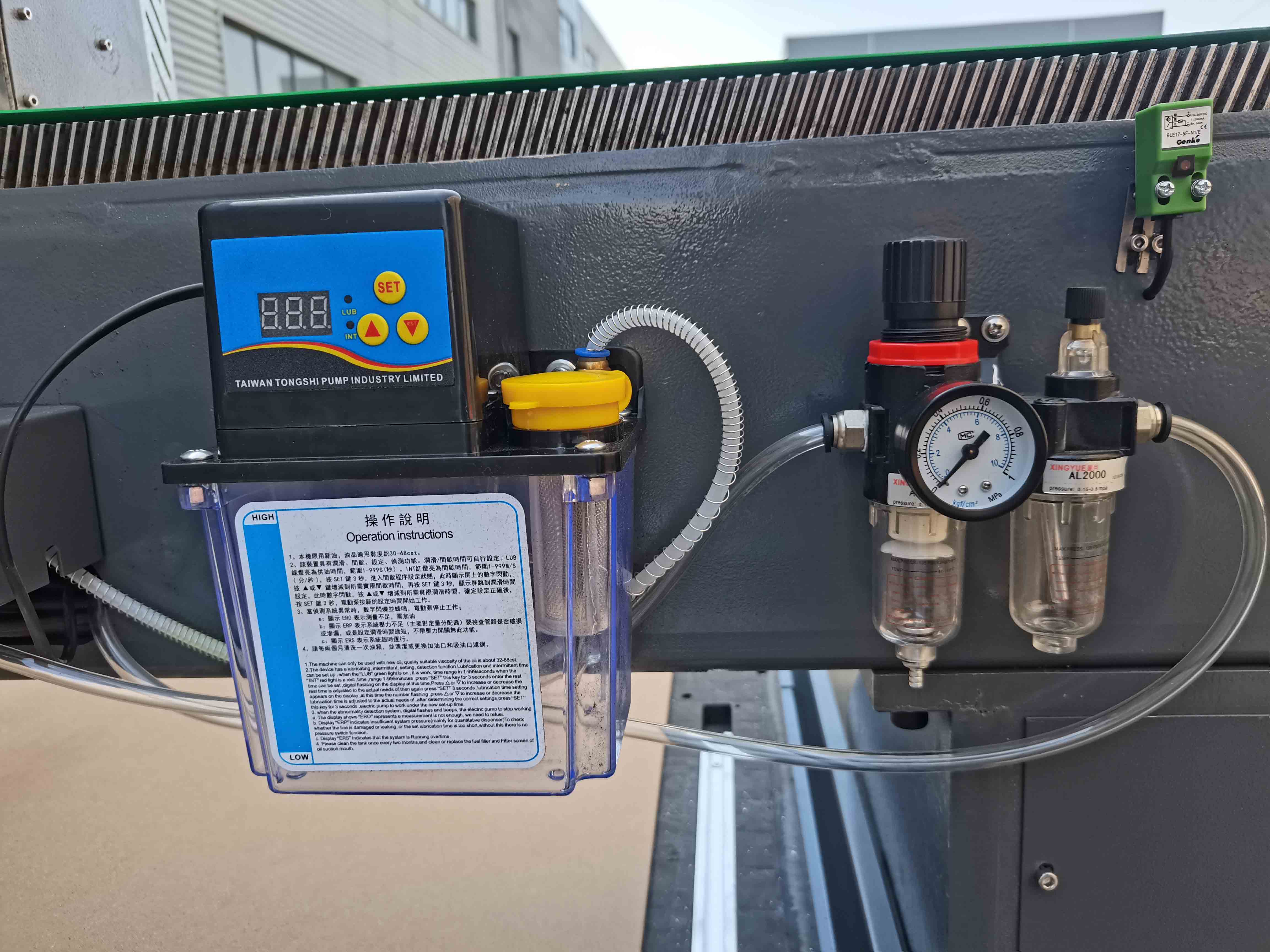

auto lubrication system

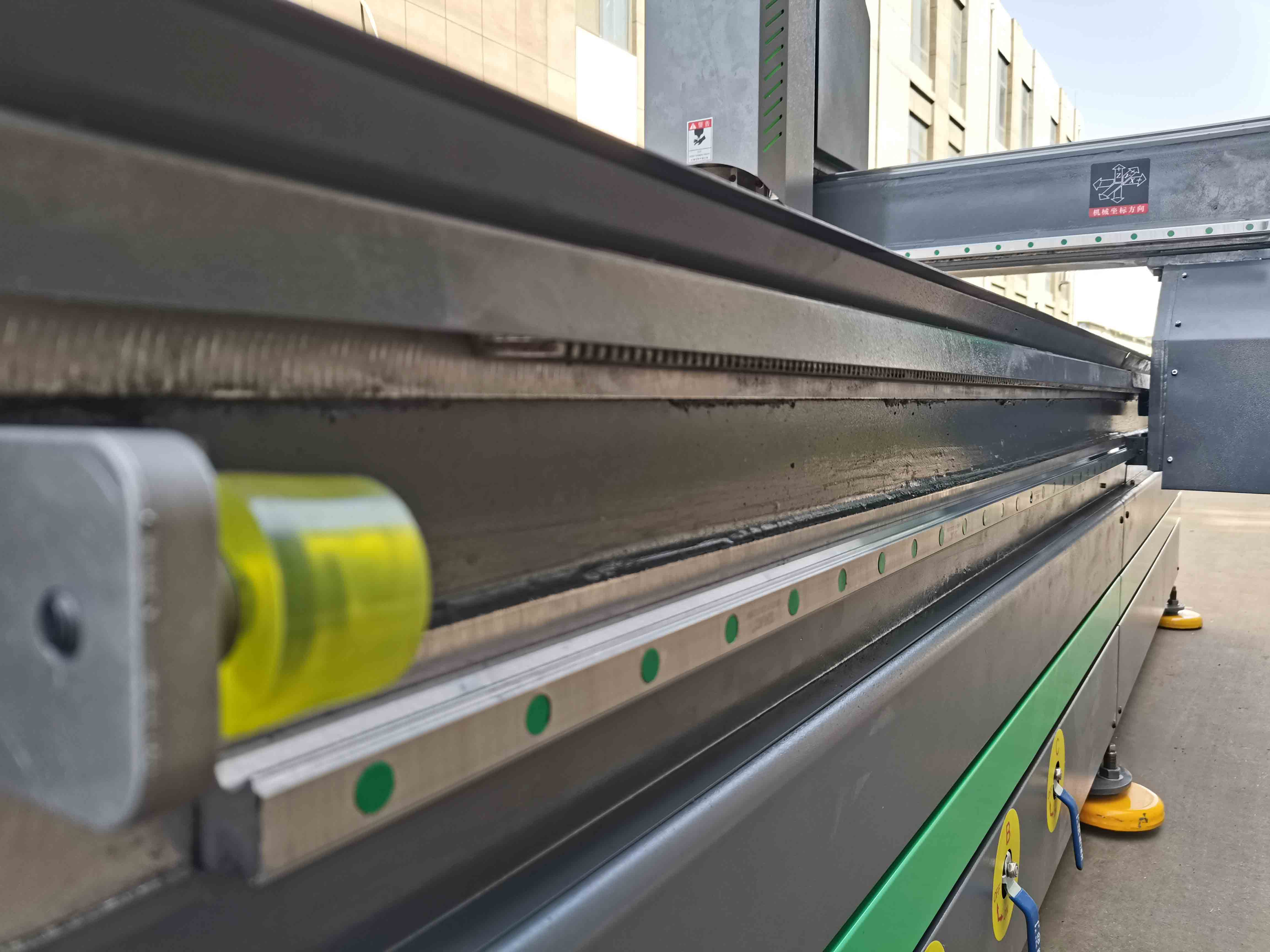

Guide and rail

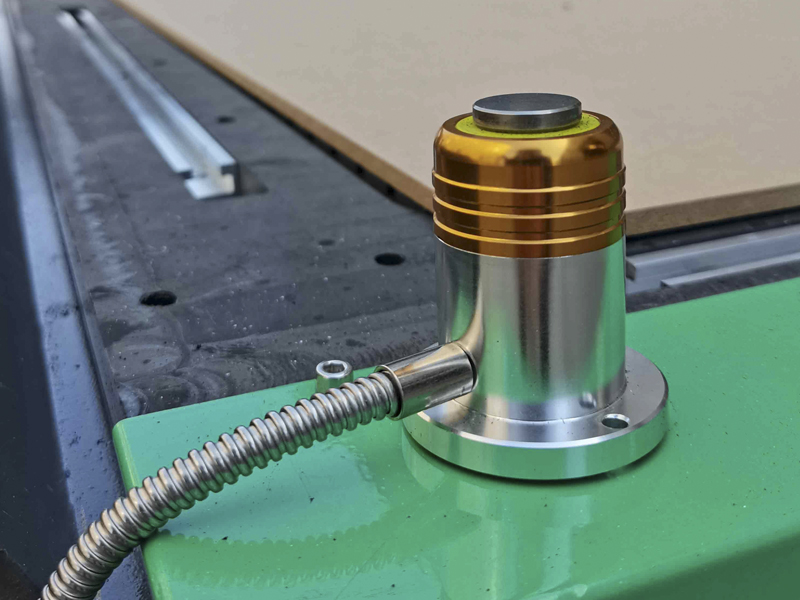

Tool setting gauge
Model | XK-S8 ATC cnc router machine |
X axis working area | 1300mm(Do customized) |
Y axis working area | 2500mm(Do customized) |
Z axis working area | 200mm |
Bed structure | Welding of thick wall square pipe |
Max working speed | 45m/min |
Max engraving speed | 25m/min |
Repositioning accuracy | ±0.05mm |
Command | G code |
Working voltage | 380V 50/60HZ 3phase |
Spindle | 9kw HQD China air cooling spindle |
Spindle speed | 0-18000rpm/min |
Inverter | Folinn inverter |
Tools pcs | 4-8 pcs for linear-type auto change |
Working table | Vacuum table |
Vacuum pump | 7.5kw air vacuum pump |
Transmission | X/Y helical gears,Z axis ball screw |
Guide | Hiwin guide and rail |
Working motor&driver | servo motor&servo driver |
Reducer | Shimpo reducer |
Controller system | DHTN |
Automatic location | Automatic location |
Oiling system | Auto oiling system |
Spindle | Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Vacuum table Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | Vacuum table Dust collector CCD Camera |
1. 9kw ATC spindle and tool changing magazine, the machine can change tools automatically during the work.
3. Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard. The frame is a welded heavy steel tubular construction that supports all the other parts of the machine.

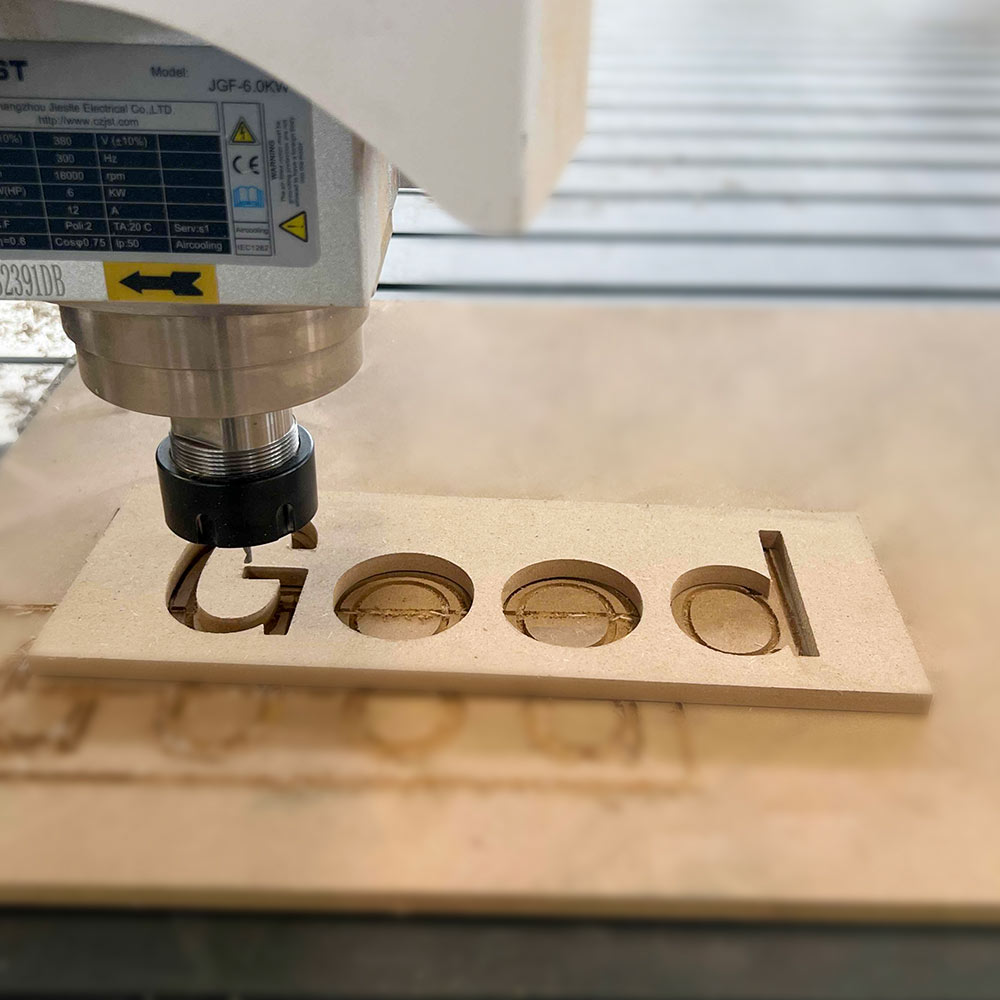

MDF Cutting

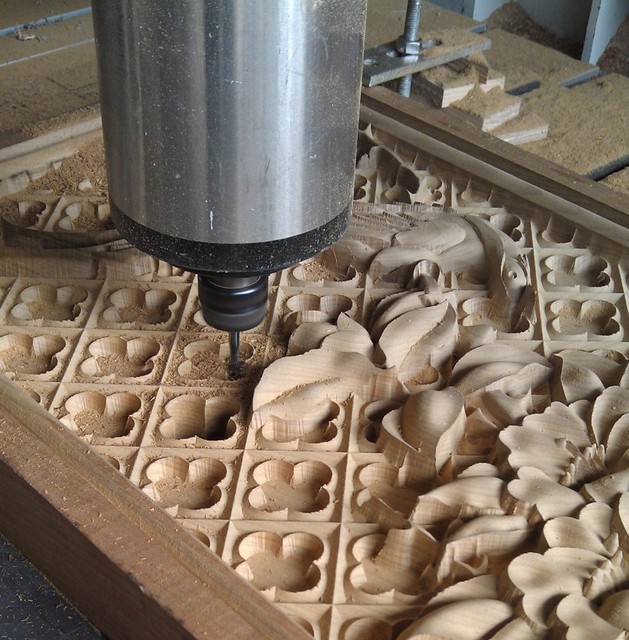

Wood Carving
LED Words

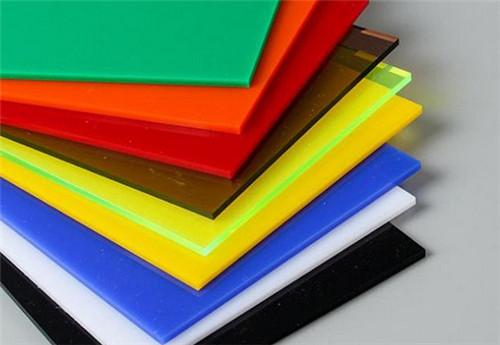

Acrylic Cutting
Wooden furniture
Wooden furniture
Foam
Stone
PVC
KT Boards
