G3 CO2 laser cutting machine
Xunke
Cutting Engraving
Metal Acrylic Wood Stone Other
Advertising industry Stone processing industry

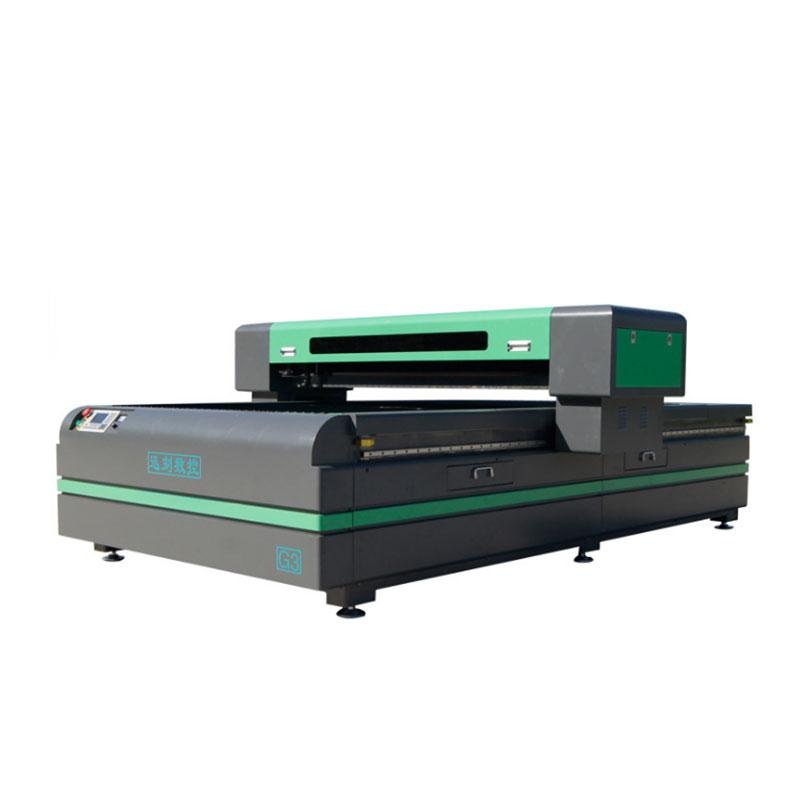

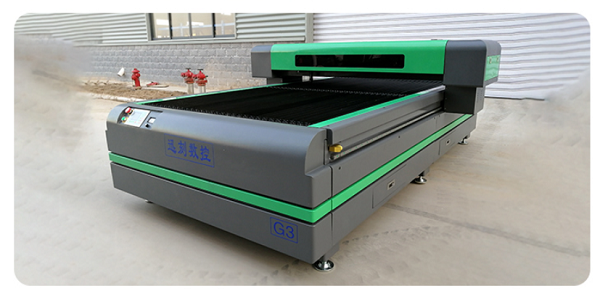

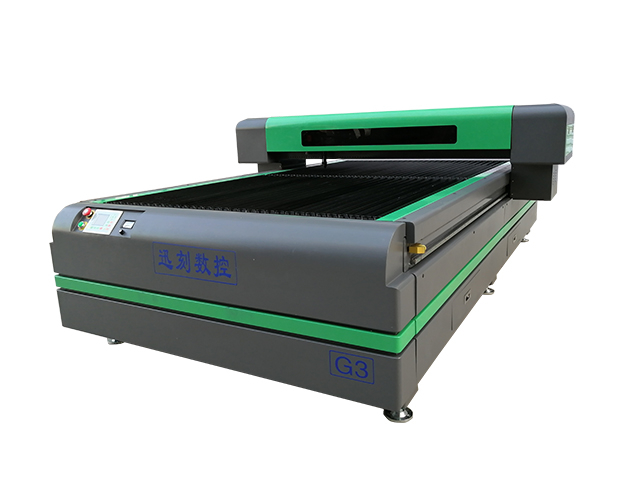

G3 CO2 Laser Cutting Machine
G3 is a kind of CO2 laser cutting machine used in advertising or handicraft industry.
It is equipped with CCD Camera for edge cutting, servo motor for working efficiency and precision, heavy machine body for stable working
G3 CO2 laser cutting machine is used widly to cut and engrave wood, MDF, plywood, PVC acrylic, paper, fabric, stone and soft materials through CO2 laser cutting technology, it has wide applications in advertising industry, garment industry and so on.
Model | XKCNC-G3 | Power supply | US |
Machine Size | 2200*3500*1500mm | Drive | Yako S3 |
Working area | 1300*2500*100mm | Control system | NC Studio/Syntec/DSP |
Gantry | Square gantry with Cast iron side panels | Motor | Yako S3 servo motor and reducer |
Laser tube | Chendu Weiju | Platform | Blade |
Laser power | 100w-200w | Cabinet | Industrial grade anti-interference cabinet |
Driving mode | Taiwan rack and Hiwin square rail | Voltage | 220V/380V |
Rail | 20 linear square rail | Accuracy | ±0.02mm |
Warranty | 1 year | Operation Code | G Code(*.nc.*.mmg.*.u00,etc.),eng |
Software | CAD/CAM(Window98/XP/7/8/10 ) | ||
Application | Cutting with CCD, acrylic, luminous word, advertising signs |
High quality laser tube: we choose a laser tube with high quality, which ensures the cutting and engraving effciency, it is in high stability and durability.
Identify different formats: it can identify multiple formats, such as PLT, DXF, BMP, etc.
Heavy machine body

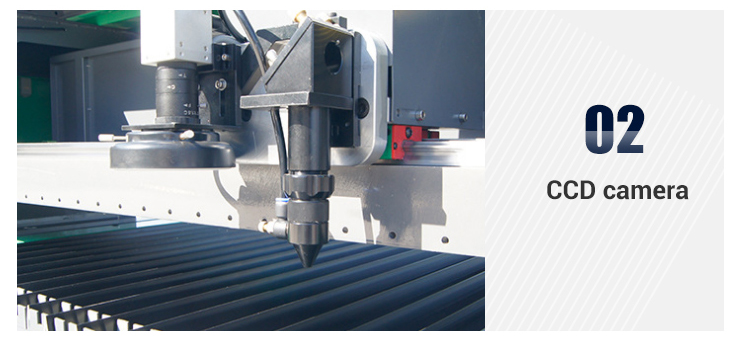

Equipped with CCD Camera
Slected high-power laser tube-light stability, continuous light does not decay long life
Large screen operation panel, direct preview of processing graphics, more convenient operation
A:Yes, this machine can cut a little metal, it had better choose mixed laser head.
A:There's a possibility, we need adjust the parameters to the appropriate laser cutting parameters togother with suitable lens, air compressor can be used when necessary, This can effectively avoid the situation of burning the material.
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
