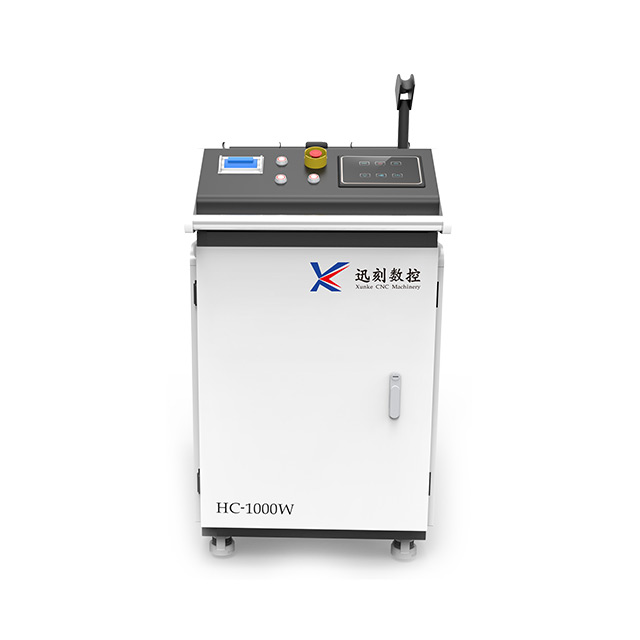

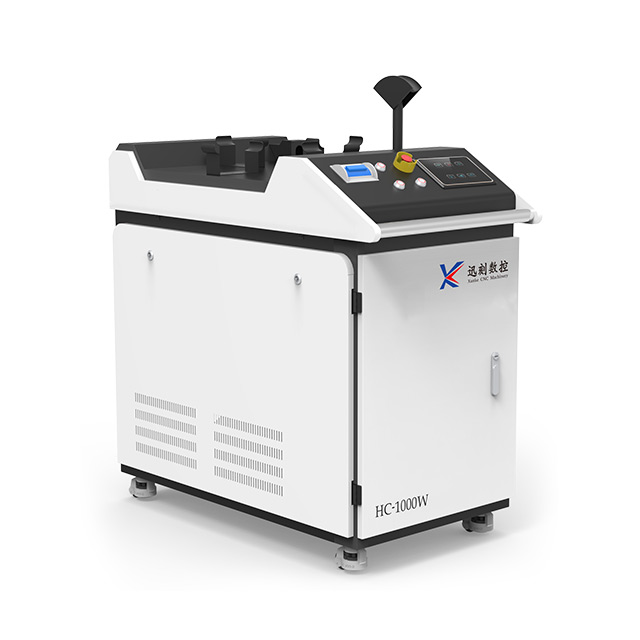

HC-1000W/1500W/2000W/3000W
Xunke
Cutting Welding Cleaning
Metal
Metal processing Metal Tube/pipe processing Furniture manufacturing Stone processing industry
HC-1000W can be cleaned quickly, brightly and accurately to remove surface paint, coating and oxidation layer; the equipment processing has no damage to the substrate; it can be used for a long time with low running cost; the equipment can be operated automatically and is easy to operate; it is environmentally friendly and has no secondary pollution.

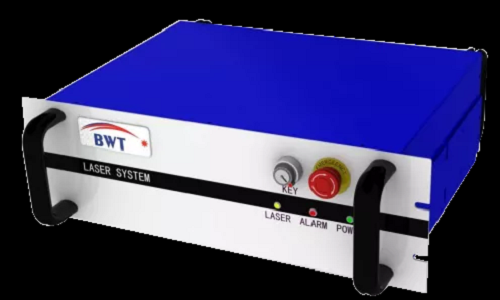

Laser source
*1000W/1500W BWT laser source 20μm Fiber core diameter, higher electro-optical conversion efficiency High beam quality and strong system stability

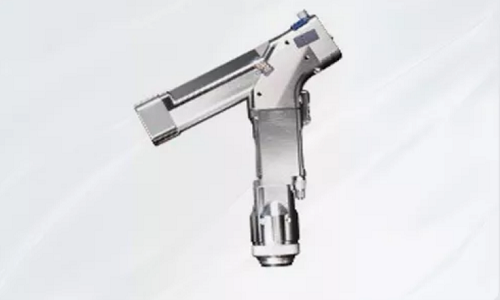

Cleaning head
*Galvanometer width adjustable, bead width 0.5-6mm
*Dedicated welding tip for welding at any position and angle
*Infrared positioning, more accurate welding position

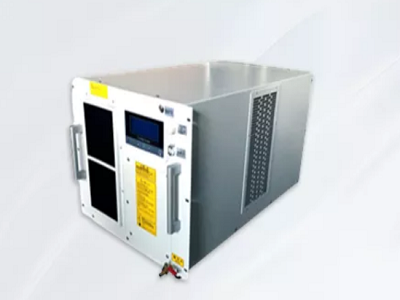

Water chiller
*Intelligent temperature control and compressor refrigeration
*LCD display, temperature always displayed
*20μm fiber core warp, higher electro-optical conversion efficiency
Lasers can be transmitted via fiber optics and easily operated at a distance in conjunction with robots and manipulators.
Laser Power | 1000W |
Laser working mode | Continuous |
Laser wavelength | 1064nm |
Laser type | Optical fiber |
Fiber length | 10m |
Scan amplitude | 60mm |
Way of working | Handheld/Automated |
Refrigeration unit | Intelligent dual temperature chiller |
Total power | 6KW |
Cleaning Speed | 10-50 m⊃2;/hour |
The distance between cleaning head to cleaning material | 300-500mm (400mm is better) |
Working time | It can work continuously for 24 hours |
Working environment temperature range | 15-35℃ |
Humidity range of working environment | <70% non-condensing |
Machine size(length x width x height) | 350mm*600mm*1300mm |
Voltage requirement | AC220±10%VAC,50/60HZ |
1. What is the speed of the laser cleaning machine?
Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of 0.5m2/h-15m2/h
2. Is it possible to clean the mold?
Yes,You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox. The effect of paint and rust removal Very good, you can refer to our video below
3. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,Relative damage of material, pulse type is less than continuous type.
4.Language interface
Support Chinese and English, and language settings can also be set according to customer needs

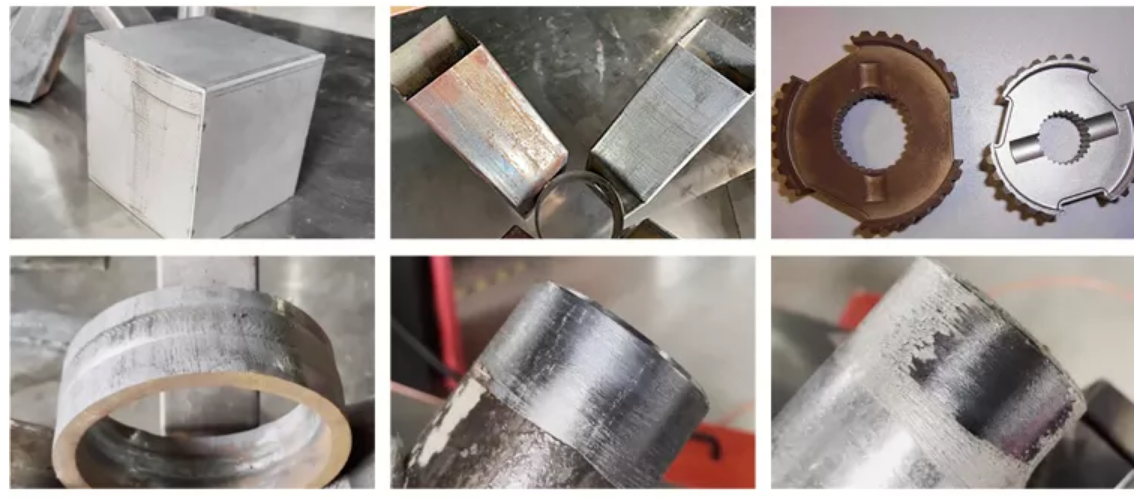

5.lassification of cleaning objects
oxide layer/rusty scale/Paint, coating/Dirt, carbon layer/Others
