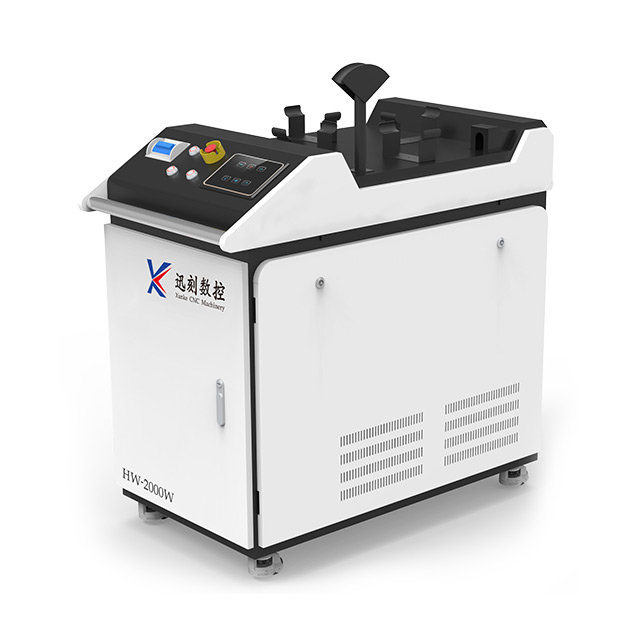

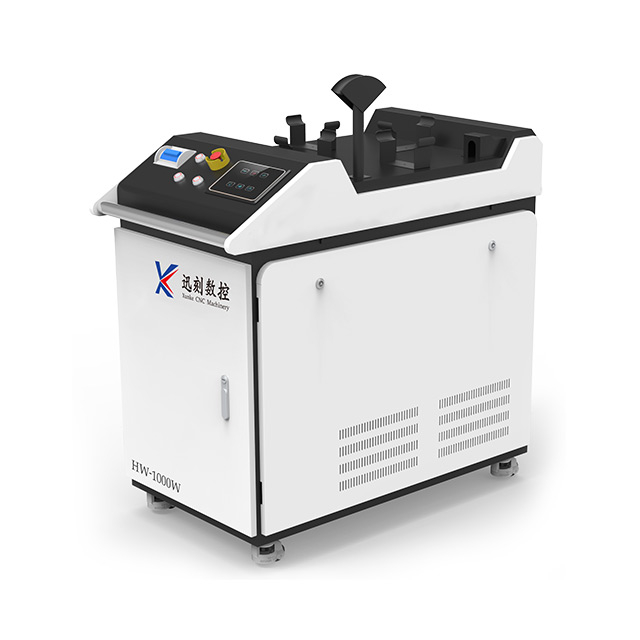

HW-1000W/1500W/2000W/3000W
Xunke
Welding
Metal
Metal processing Furniture manufacturing
Laser welding uses a highly concentrated beam of light on a very tiny spot so that the area under the laser beam absorbs the light and becomes highly energetic. As powerful laser beams are used, the electrons in the area get excited to a point where the material melts as the result of the atoms breaking the bonds with each other.
It has some advantages
1.Light weight of 0.8 kg , small size , easy for operator to weld for a long time.
2.A safe lock in nozzle of welding head can protect people from hurt.
3.double focal spots and uniform density optical energy, making high quality and smooth welding gap.
4.Friendly operation system that there are just three parts to be adjusted, everyone can be a professional welder.
5.By the a special vent in back of machine, the laser tool is effectively insulated from internal heat
The hand-held head can be equipped with nozzles of various angles. The highest power of welder can be reached 2000w.
Laser source
*1000W/1500W BWT laser source 20μm Fiber core diameter, higher electro-optical conversion efficiency High beam quality and strong system stability
Welding head
*Galvanometer width adjustable, bead width 0.5-6mm
*Dedicated welding tip for welding at any position and angle
*Infrared positioning, more accurate welding position

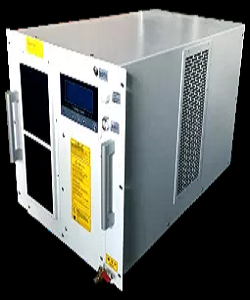

Water chiller
*Intelligent temperature control and compressor refrigeration
*LCD display, temperature always displayed
*20μm fiber core warp, higher electro-optical conversion efficiency

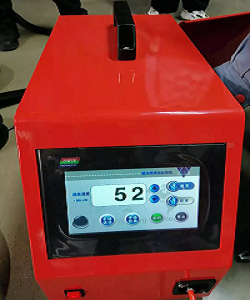

Wire feeding system
*Automatic wire feeding device
*Software control, adjustable wire feed speed
*Fill welds and increase welding strength

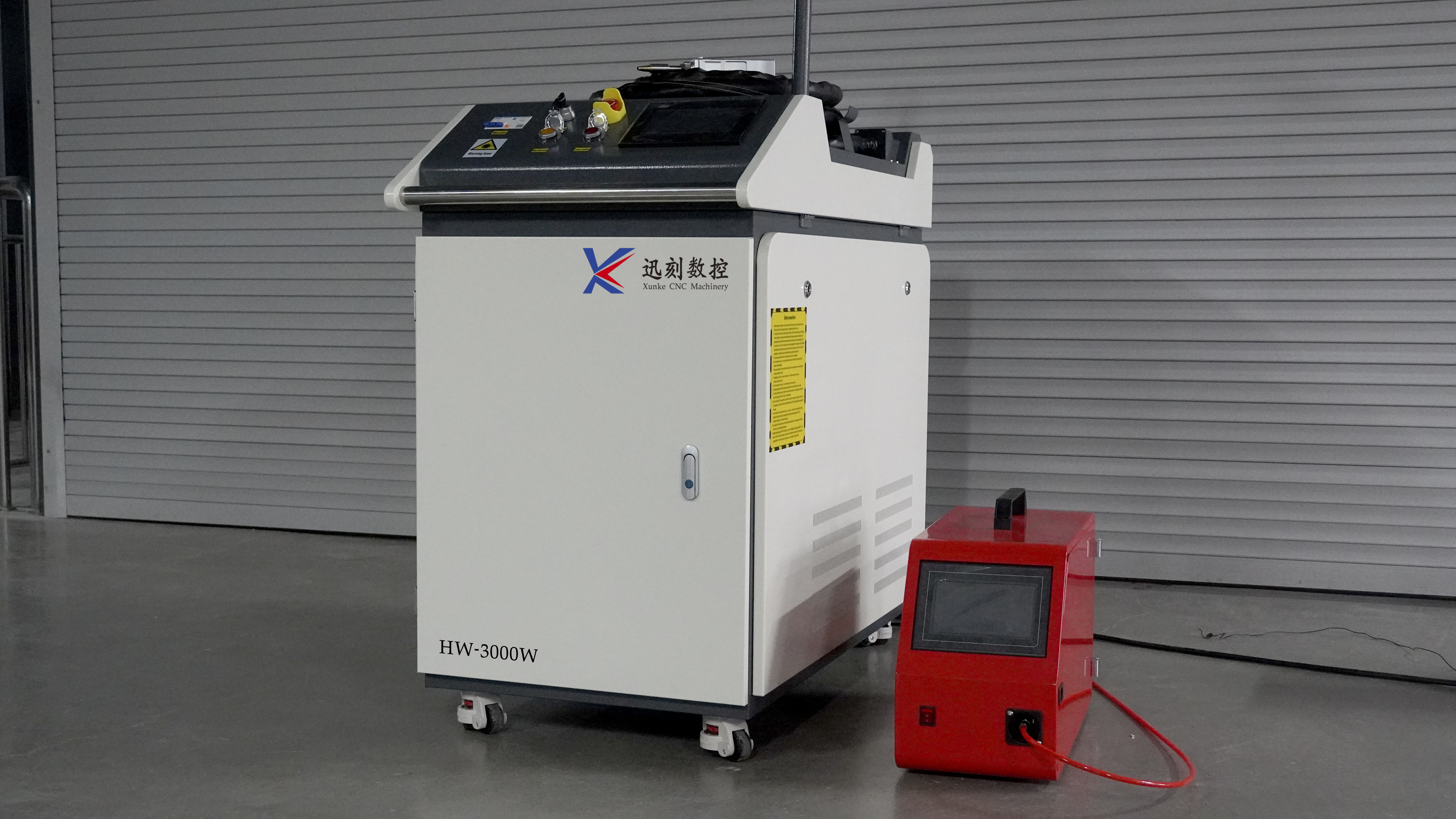

Model | HW-3000w | |
Model name | Handle laser welding machine | |
Laser Power | 1000W/1500W | |
Laser wavelength | 1070nm | |
Fiber core diameter | 20μm | |
Fiber length | 10m | |
Laser working mode | Continuous / Modulation | |
Galvanometer width | 0.5-6mm | |
Galvo scan speed | ≤8000mm/s | |
Welding speed | 0-120mm/s | |
Refrigeration unit | Intelligent dual temperature chiller | |
temperature range | 15-35℃ | |
Humidity range of working environment | < 70% non-condensing | |
Welding material thickness | ≤2mm | |
Welding gap requirements | ≤0.5mm | |
Voltage requirement | 220V±10% | |
Total power | ≤5KW | |
Machine size | 1350mm*600mm*1300mm |
Laser source | BWT Raycus IPG |
Welding head | HW welding head Au3tech laser welding head WSX welding head SUP20S welding head |
Wire feeding system | Usual type or SUP 20S feeding device |
… | … |
Laser welding offers several advantages that are often not found in other welding methods. Some of the defining characteristics of laser welding are:
The whole welding process can be easily automated using a CAD/CAM setup
No electrode is used in the process
No form of tool wear occurs
Laser welding is highly specific in targeting
High-quality welds are obtained

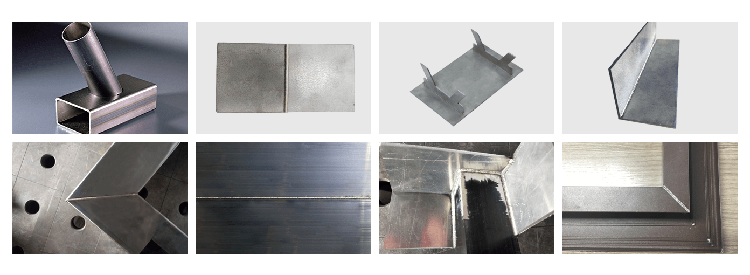

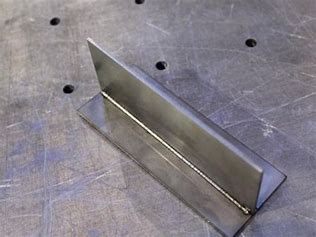

A: It can weld stainless steel, carbon steel, aluminum, brass, copper, etc
A:It will be chosen based on the materials and thickness. For example, one machine with 1000w laser power can weld 1-3mm stainless steel. So if you have a need of laser welding machines, please contact us to discuss the details, then choose the most suitable machine.
