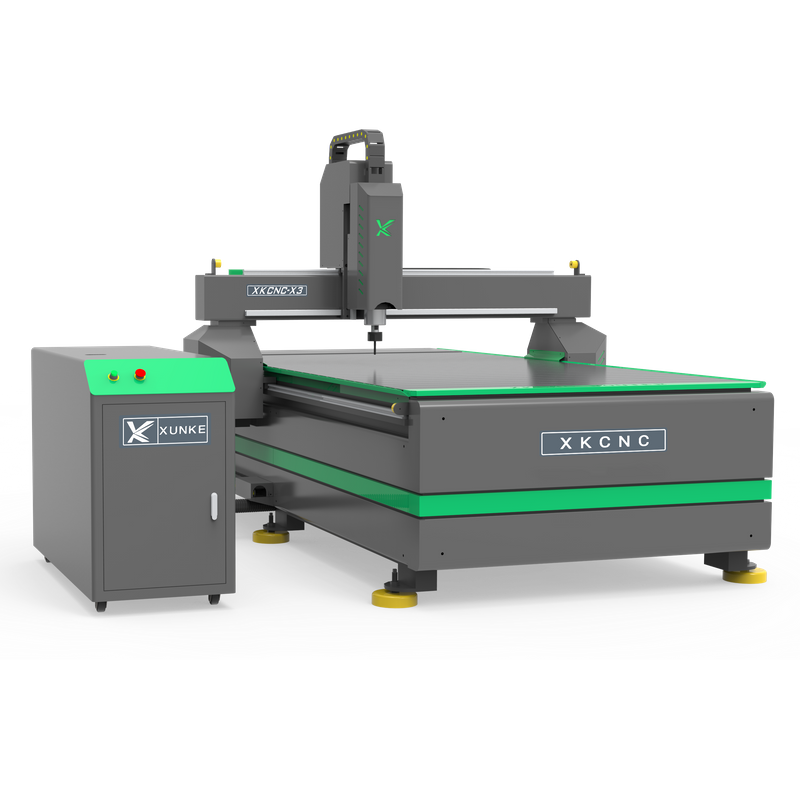

XK X3 professional CNC Router
X3 CNC ROUTER
XK-X3 cnc router is a classical type cnc router, which is popular in domestic market for carving wood, cutting PVC, MDF, plywood, acrylic, etc. It can process a variety of non-metallic materials.
It is a kind of professinal cnc router for advertising industry, crafts, artworks, printing and tombstone.
It is equipped with heavy machine base, which is made by myselves, based on that, we can control the quality and save a lot of time to manufacture
machines, which gives us the confidence to deliver the machine on time.

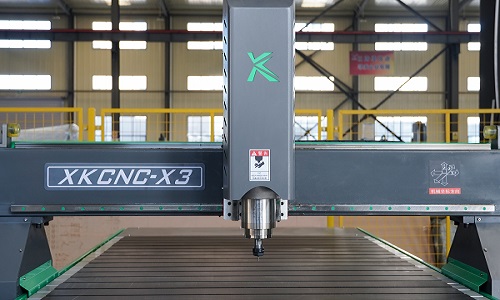

Spindle

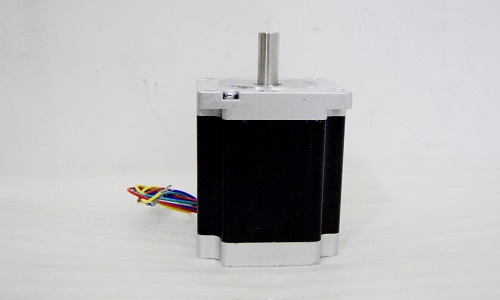

Motor

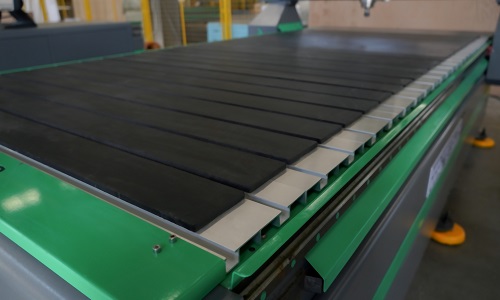

Aluminum profile+T-slot
Guide rail and rack
No. | model | parameter | Unit | |
1. | Working area | 2500x1300x200 | mm | |
2. | X axis | 1300 | mm | |
3. | Y axis | 2500 | mm | |
4. | Z axis | 200 | mm | |
5. | X,Y positioning accuracy | ±0.05/1000mm | mm | |
6. | X,Y repeat positioning accuracy | ±0.03/1000mm | mm | |
7. | Max running speed | 25 | m/min | |
8. | Weight | 850 | Kg | |
9. | Table max load | 400 | Kg | |
10. | Packaging size(LxWxH) | 3200×2050×1750 | mm | |
11. | Control system | NC studio | ||
12. | Whole machine power | ≥4.5 | Kw | |
13. | Voltage | 380v/220v 50HZ |
Spindle | Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, etc |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Vacuum table Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo motor |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | CCD Camera Vacuum table Dust collector two or multi-spindles |
Equipped with NC studio control system, it is easy to operate. DSP control system and Mach 3 control system are also working.
Heavy machine base, which can support thick materials with 30mm thickness.
High quality water cooling spindle, it has lower noise and long lifespan.
MDF Cutting
Wood Carving
LED Words
Acrylic Cutting
Wooden furniture
Wooden furniture
Foam
Stone
PVC
KT Boards
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
