1. Linear guide rail, large load capacity
2. German-made double-nut ball screw, high precision
3. Power off protection function
Availability: | |
---|---|
XK-1325
Xunke
8465990000
Cutting Engraving
Acrylic Wood Stone Other
Woodworking industry Advertising industry Furniture manufacturing Stone processing industry

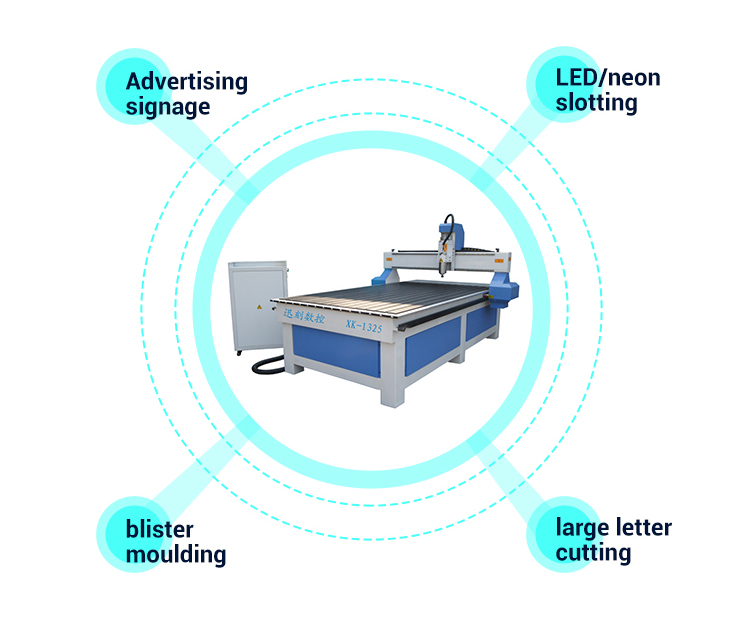

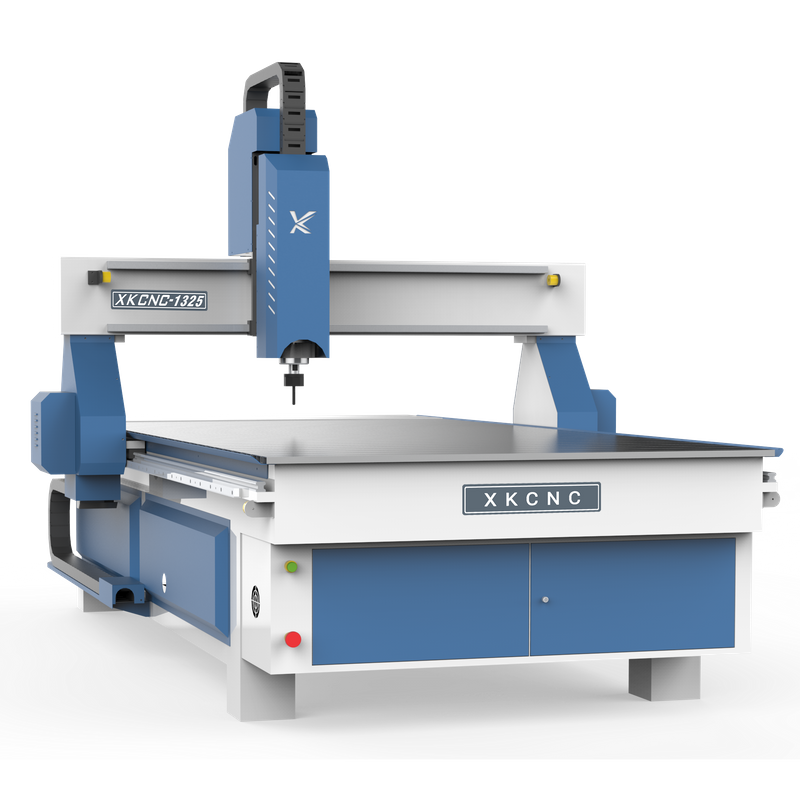

1325 cnc router is a classical type cnc router, which is popular in domestic market for carving wood, cutting PVC, MDF, plywood, acrylic, etc. It can process a variety of non-metallic materials.
It is a kind of professinal cnc router for advertising industry, crafts, artworks, printing and tombstone.
It is equipped with heavy machine base, which is made by myselves, based on that, we can control the quality.

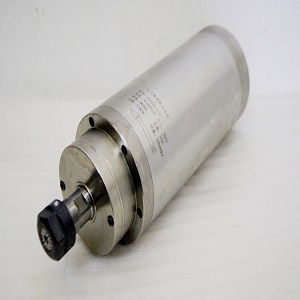

Spindle

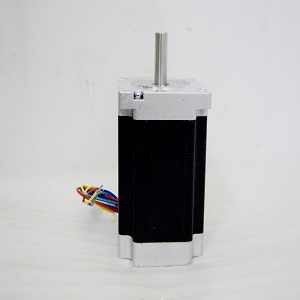

Motor

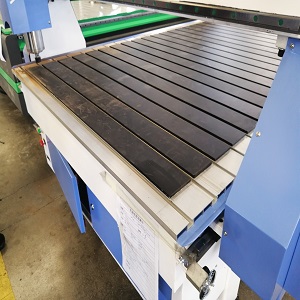

Aluminum profile+T-slot

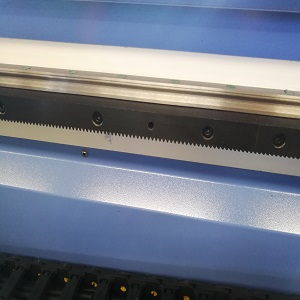

Guide rail and rack
No. | model | parameter | Unit | |
1. | Working area | 2500x1300x200 | mm | |
2. | X axis | 1300 | mm | |
3. | Y axis | 2500 | mm | |
4. | Z axis | 200 | mm | |
5. | X,Y positioning accuracy | ±0.05/1000mm | mm | |
6. | X,Y repeat positioning accuracy | ±0.03/1000mm | mm | |
7. | Max running speed | 25 | m/min | |
8. | Weight | 850 | Kg | |
9. | Table max load | 400 | Kg | |
10. | Machine size(LxWxH) | 3200×2050×1750 | mm | |
11. | Control system | NC studio | ||
12. | Whole machine power | ≥4.5 | Kw | |
13. | Voltage | 380v/220v 50HZ |
Spindle | Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Vacuum table Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | Vacuum table Dust collector CCD Camera two or multi-spindles |
Equipped with NC studio control system, it is easy to operate. DSP control system and Mach 3 control system are also working.
Heavy machine base, which can support thick materials with 30mm thickness.
High quality water cooling spindle, it has lower noise and long lifespan.
MDF Cutting

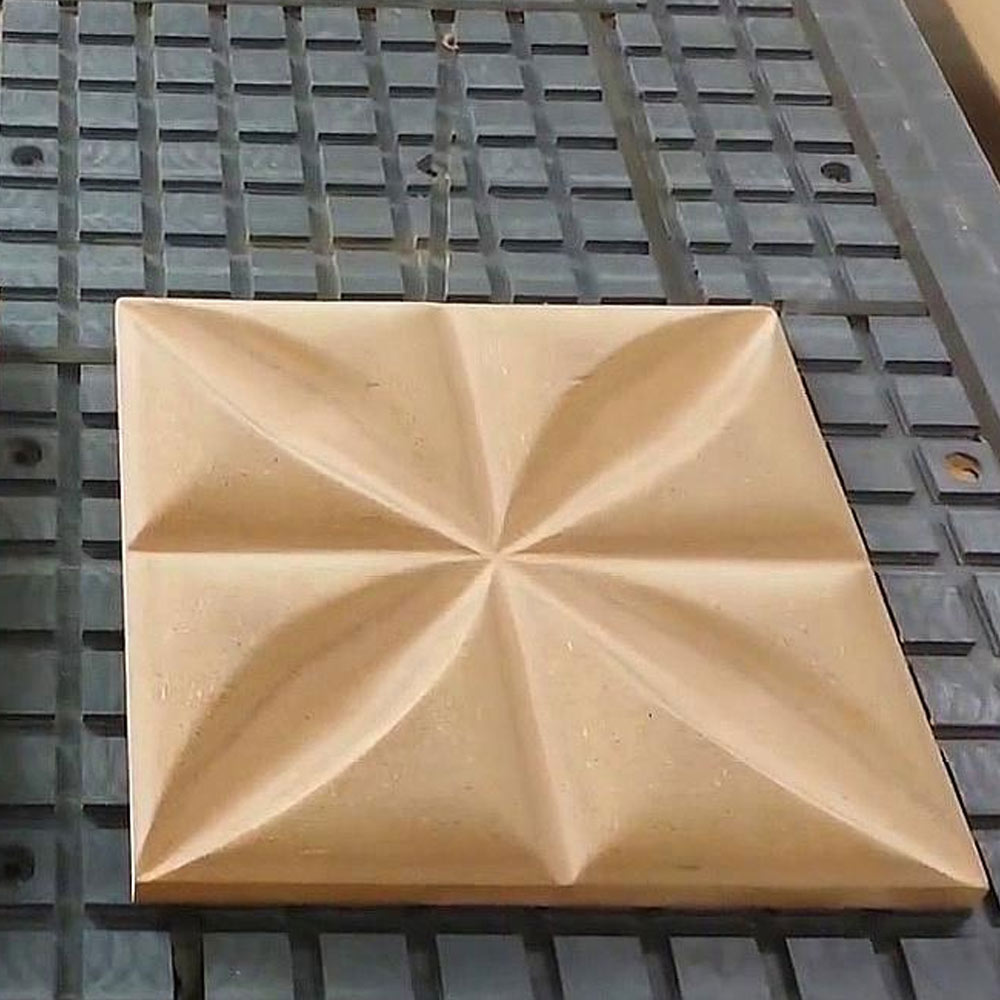

Wood Carving
LED Words
Acrylic Cutting
Wooden furniture
Wooden furniture

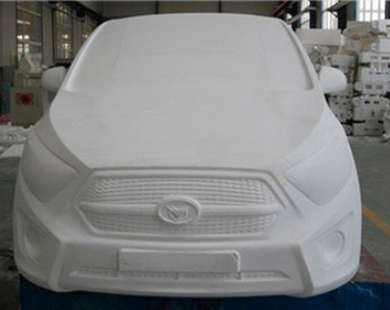

Foam
Stone
PVC
KT Boards
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |

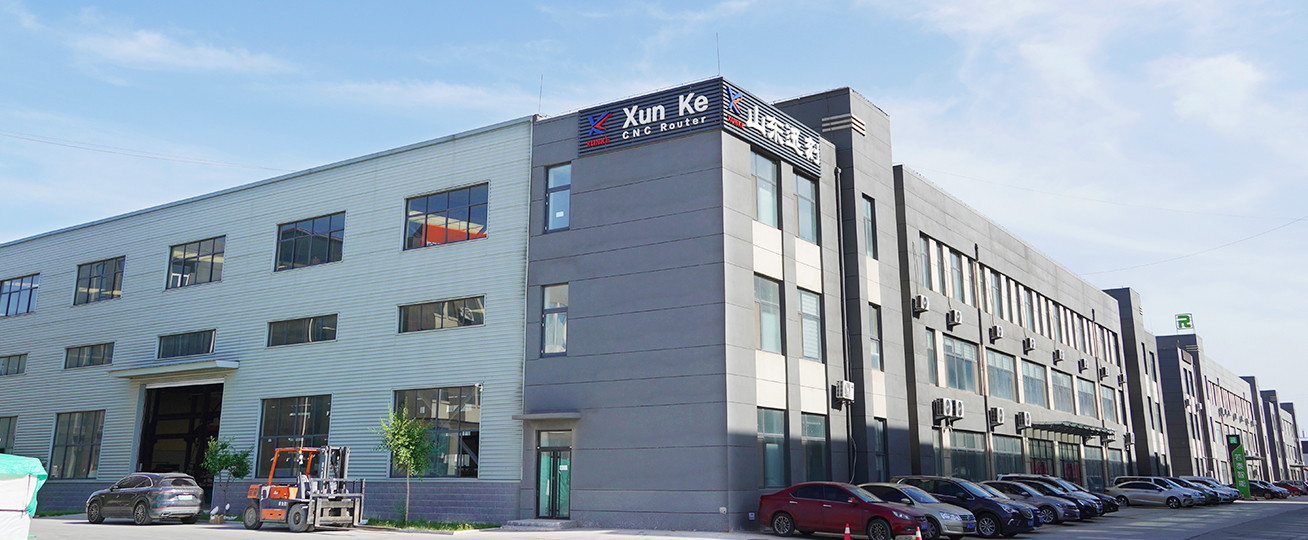

Welcome to visit our company! |
