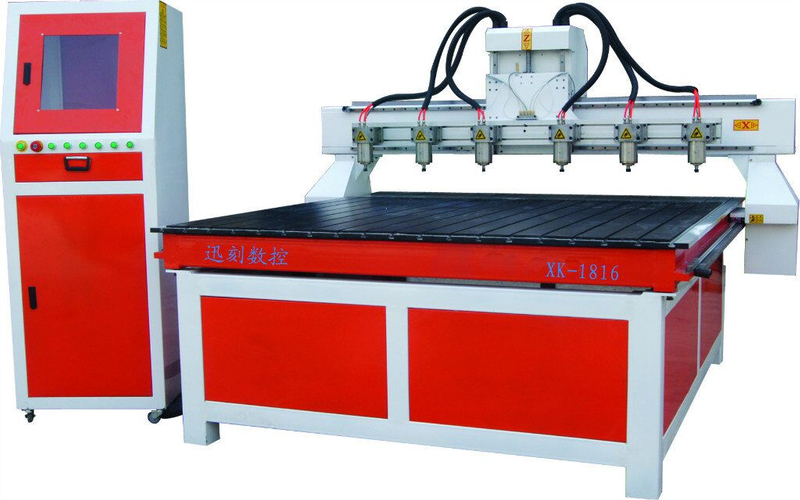

Multi spindles cnc router
Xunke
Cutting Engraving
Acrylic Wood Stone Other
Advertising industry
Multi head CNC router machine is specially designed for customers who require large quantities and small parts processing, it is suitable for processing cabinet doors, artistic relief screens, craft windows, relief craft gifts, solid wood art murals, woodworking calligraphy carvings, art photo frames, electrical countertops, sporting goods Equipment, violin arc, non-ferrous metal carving/cutting and some other industries.
Inverter
Drive
Rack
Motor
No. | model | parameter | Unit | |
1. | Working area | 2500x1300x200 | mm | |
2. | X axis | 1300 | mm | |
3. | Y axis | 2500 | mm | |
4. | Z axis | 200 | mm | |
5. | X,Y positioning accuracy | ±0.05/1000mm | mm | |
6. | X,Y repeat positioning accuracy | ±0.03/1000mm | mm | |
7. | Max running speed | 25 | m/min | |
8. | Weight | 2500 | Kg | |
9. | Table max load | 400 | Kg | |
10. | Machine size(LxWxH) | 3200×2050×1750 | mm | |
11. | Control system | NC studio | ||
12. | Whole machine power | ≥4.5 | Kw | |
13. | Voltage | 380v/220v 50HZ |
Spindle | 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Aluminum profile and T-slot Vacuum table |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | Dust collector two or multi-spindles |
Multi spindle processing: Multi-spindle can work on the same pattern at the same time, which greatly increases the processing speed. It can also work independently with a single spindle to control the production cost.
Multi spindle CNC wood router machine frame adopts the overall thickness of the steel structure design, after the welding tempering aging treatment, strong rigidity, high strength, smooth rotation, making long-term high-speed operation without deformation, no jitter.
Multi head CNC woodworking machine adopts Taiwan Hiwin linear guide transmission, three-axis full orbit, can be re-cut; Adopts international brands microsteps subdivided stepper motor and high-speed drive to ensure that the machine for a long time high-speed operation.
Multi head CNC wood router machine adopts DSP control system don’t need connect to PC. DSP is easily operate and learned,especially for beginners. It has power off. , Breakpoint continued carving and other advantages, processing time prediction and other functions, the real human design. Perfectly supports the G standard of the ISO standard, the ENG process, and is compatible with various processing codes generated by various CAD/CAM design software such as Types/ArtCAM//Wentai.
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
