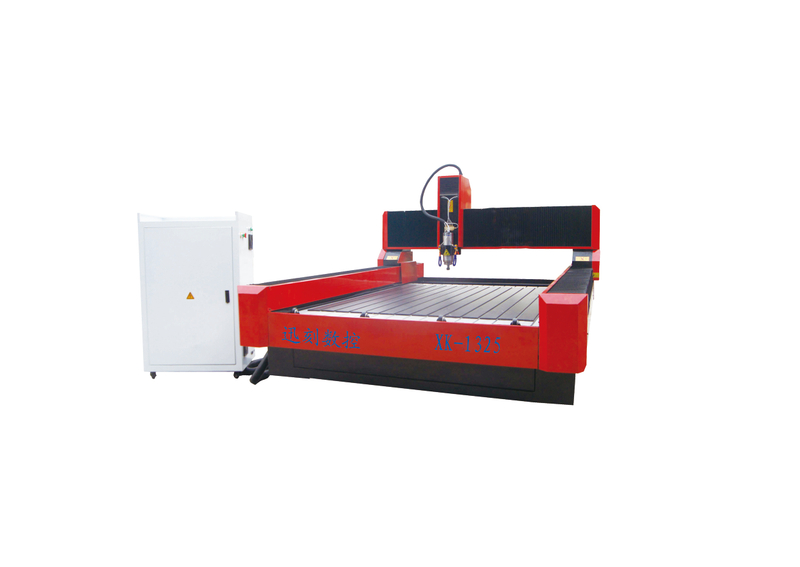

XK-1325 Stone cnc router
Xunke
Engraving
Stone
Stone processing industry
Stone is the most abundant natural material that is available on earth. Stone has many uses.
Some of the earliest recorded finds have been tombstones. Being indestructible these tombstones have left a trail of history.
The information carved on such tombstones was hand carved. Stone masons used a stone chisel and patiently carved letters and later symbols.
Today this job has been taken over by a machine. This is the CNC Router machine. CNC stands for computer numerical control.
All you need to do is transfer the design for a tombstone via CAM software into the computer of the CNC router machine.
The router will faithfully copy the design by engraving the stone with repeated passes to get depth.
No. | model | parameter | Unit | |
1. | Working area | 2500x1300x200 | mm | |
2. | X axis | 1300 | mm | |
3. | Y axis | 2500 | mm | |
4. | Z axis | 200 | mm | |
5. | X,Y positioning accuracy | ±0.05/1000mm | mm | |
6. | X,Y repeat positioning accuracy | ±0.03/1000mm | mm | |
7. | Max running speed | 25 | m/min | |
8. | Weight | 2500 | Kg | |
9. | Table max load | 400 | Kg | |
10. | Machine size(LxWxH) | 3200×2050×1750 | mm | |
11. | Control system | NC studio | ||
12. | Whole machine power | ≥4.5 | Kw | |
13. | Voltage | 380v/220v 50HZ |
Spindle | 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | Dust collector two or multi-spindles |
Lathe bed with thick wall steel pipe welded together, after the high temperature tempering treatment, ensure a little deformation, good rigidity and strength.
Y axis adopt double motor drive, selection of matching, to ensure the smooth movement.
Mixer adopts high precision gear rack transmission, high precision, speed and strength.
Mixer adopts imported square linear guide, precision is high, bearing large redundancy, long service life.
Electromechanical provided design, selection of all kinds of electrical accessories, minimize failure rate.

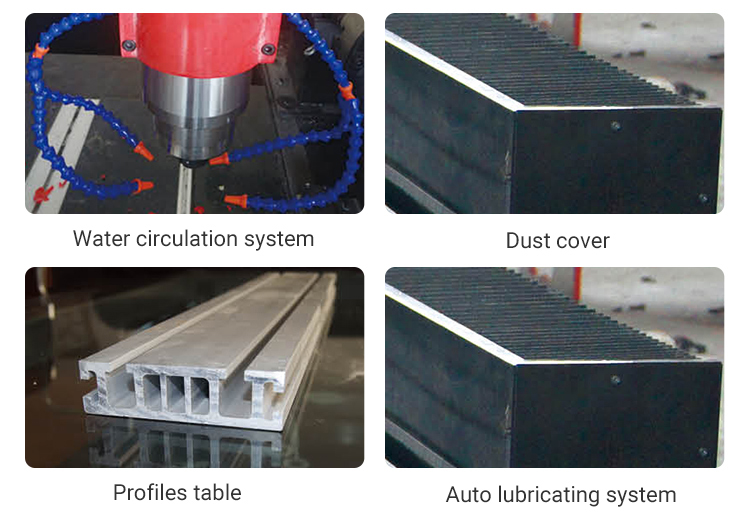

Mixer machine equipped with water tank and automatic water cooling system.
In pieces all the dust waterproof design, all-round protection machine transmission parts.
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
Stone is the most abundant natural material that is available on earth. Stone has many uses.
Some of the earliest recorded finds have been tombstones. Being indestructible these tombstones have left a trail of history.
The information carved on such tombstones was hand carved. Stone masons used a stone chisel and patiently carved letters and later symbols.
Today this job has been taken over by a machine. This is the CNC Router machine. CNC stands for computer numerical control.
All you need to do is transfer the design for a tombstone via CAM software into the computer of the CNC router machine.
The router will faithfully copy the design by engraving the stone with repeated passes to get depth.
No. | model | parameter | Unit | |
1. | Working area | 2500x1300x200 | mm | |
2. | X axis | 1300 | mm | |
3. | Y axis | 2500 | mm | |
4. | Z axis | 200 | mm | |
5. | X,Y positioning accuracy | ±0.05/1000mm | mm | |
6. | X,Y repeat positioning accuracy | ±0.03/1000mm | mm | |
7. | Max running speed | 25 | m/min | |
8. | Weight | 2500 | Kg | |
9. | Table max load | 400 | Kg | |
10. | Machine size(LxWxH) | 3200×2050×1750 | mm | |
11. | Control system | NC studio | ||
12. | Whole machine power | ≥4.5 | Kw | |
13. | Voltage | 380v/220v 50HZ |
Spindle | 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | Dust collector two or multi-spindles |
Lathe bed with thick wall steel pipe welded together, after the high temperature tempering treatment, ensure a little deformation, good rigidity and strength.
Y axis adopt double motor drive, selection of matching, to ensure the smooth movement.
Mixer adopts high precision gear rack transmission, high precision, speed and strength.
Mixer adopts imported square linear guide, precision is high, bearing large redundancy, long service life.
Electromechanical provided design, selection of all kinds of electrical accessories, minimize failure rate.
Mixer machine equipped with water tank and automatic water cooling system.
In pieces all the dust waterproof design, all-round protection machine transmission parts.
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
Machine type XK - 1218 heavy stone engraving machine
Work schedule 1200 * 1800 * 300
Machine structure of thick wall tube structure of lathe bed, lu: xingcai mesa
The machine size 2000 * 2450 * 2000 (mm)
Engraving depth (150 mm)
The maximum speed carving 20 m/min
The machining accuracy < 0.05/300 mm
Carving instruction G code
Spindle power 5.5 kw water-cooled spindle
Cutter diameter
Φ Φ 6 Φ 12.7 3.175
XYZ guide
Three axis square linear guide
XY high precision rack gear transmission mode; The Z axis high precision ball screw drive
Working voltage AC380V, 50 hz
The operating system d macro system/DSP or specified system
Fixed clamp fixed materials
