Pneumatic multi heads cnc router
Xunke
Cutting Engraving
Wood
Woodworking industry Furniture manufacturing
ATC CNC ROUTER MACHINE

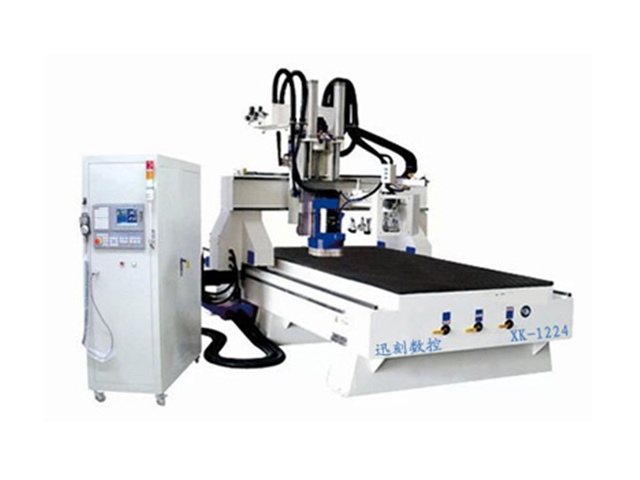

Pneumatic multi heads cnc router
According to the number of processes, different processing are equipped with different spindle motors, and a motor is equipped with different tools, so which tool is needed during work, the corresponding motor will automatically come down to work, and the rest of the motors stop And rise up standby, so that you can reduce the trouble of manual tool change, you can perform punching operations, which can meet most of the work needs, without using manual operations, saving a lot of time and labor.
This model can only have four heads, manily for making wooden door and cabinet.
Pneumatic multi heads cnc router | |
Machine Type | Pneumatic multi heads cnc router |
Operating Voltage | AC380V 50HZ 3HP Three-phase Four-wire |
Work Plan | 1300*2500*200mm |
Maximum Empty Travel Speed | XY50000mm/min Z20000mm/min |
Working Speed | 15000-30000mm/min |
Table Structure Size | Vacuum Adsorption Table 1260*2480 6 Partitions 24 Holes |
Bed Structure | Heavy-duty Double-layer Unloading Trapezoidal Bed |
Transmission | Rail 25 Square Rail |
Rack High Precision 1.5M Helical Gear | |
Reducer | |
Screw Taiwan TBI | |
Inverter | Folinn inverter |
Spindle Power | 5.5 KW*4 |
Spindle Speed | 0-18000rmp |
Driver and Motor | Step Motor |
Run Command | G Code |
Control System | DHTN |
Total Weight | 1500KG |
Plate Fixing | 7.5kw Water Circulation Vacuum Pump |
Dust Removal | 5.5kw High Power Vacuum Cleaner |
Spindle | Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Vacuum table Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Equipped with full absorption vacuum table, and the vacuum pump with strong adsorption force can strongly adsorb materials of different sizes, greatly improving work efficiency.
Oil filling system can automatically oil according to the time setting, to ensure the lubrication of the slider screw guide rail, extend the service life of the machine.
