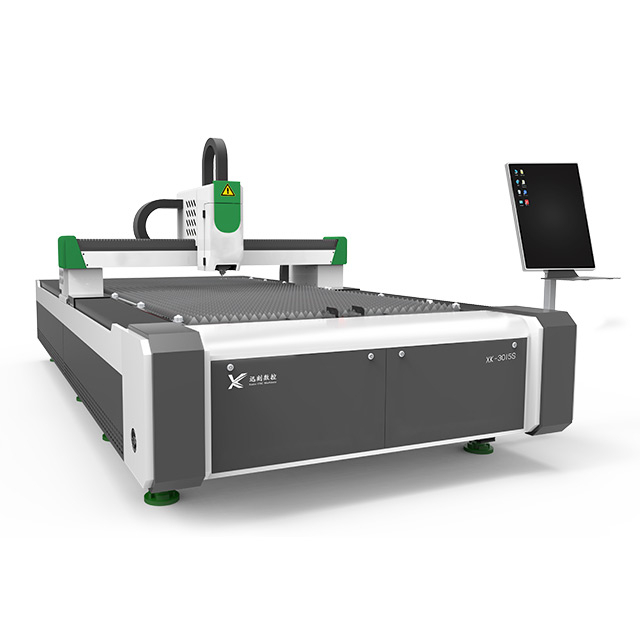

XK 3015S
Xunke
Cutting
Metal
Metal processing Metal sheet/plate processing
XK P2 is mainly used for plate/sheet cutting. Compared with plasma cutting machine, fiber laser cutting machine is faster, and has narrow joint, small thermal area, more vertical cutting edge , smoother. Besides, laser cutting machine can work on kinds of materials, including carbon steel, stainless steel, alloy steel, composite materials, etc. With the rapid development of market economy and the rapid development of science and technology, laser cutting technology has been widely used in automobile, machinery, electric power, hardware and electrical appliances.
Laser head
Water chiller
Laser source
Motor
| Model | XK 3015S | Unit |
| Working area | 3000x1500 | mm |
| X-axis travel | 1550 | mm |
| Y-axis travel | 3050 | mm |
| Z-axis travel | 120 | mm |
| X,Y positioning accuracy | ±0.05/1000mm | mm |
| X,Y repeat positioning accuracy | ±0.03/1000mm | mm |
| Acceleration | 1.5 | G |
| Max running speed | 80 | m/s² |
| Table max load | 900 | Kg |
| Machine size(LxWxH) | 4700×2200×1600 | mm |
| Laser power | 1000/1500/2000/3000 | w |
| Control system | Fscut | |
| Whole machine power | / | Kw |
| Machine voltage need | 380v/50Hz |
| Laser source | Raycus BWT MAX |
| laser head | Raytools WSX |
| Machine size | 1500*3000mm 2000*4000mm 2500*6000mm etc |
| … | … |
The overall welding platform level accuracy ≤ 0.5mm, to ensure the welding accuracy of the bed, the overall welding accuracy ≤ 5mm.
After polishing and cleaning, add the necessary anti-rust primer to prevent the internal rusting of the equipment.
Suitable for sheet metal processing in various industries, with a wide range of applications
 | 24/7 online after sales service! |
| Complete quality control process! |
| OEM&Customization! |
| Welcome to visit our company! |
