XK 3015ST
Xunke
Cutting
Metal
Metal processing Metal Tube/pipe processing Metal sheet/plate processing

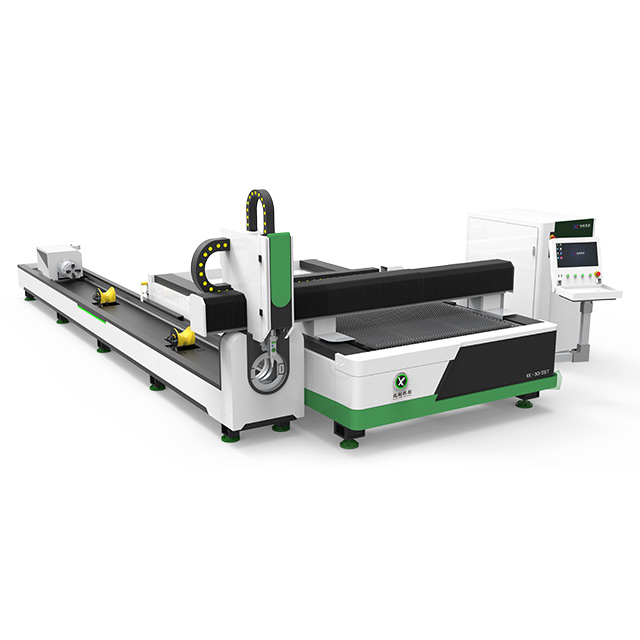

XK-3015TF is manufactured for company who has tube and sheet/plate to cut, this kind of fiber laser cutting machines have two purposes, one is to save the occupied space of the machine in the factory, another is to save the cost.
If you need to cut 70% plate and 30% tube, XK-3015TF will be the best choice.
Laser head
Water chiller
Laser source
Motor
Model | XK-3015ST | Unit |
Working area | 3000x1500 | mm |
Tube Diameter | Φ16-φ220，L=6000；（Square and rectangle tube diagonal≤200mm） | mm |
X-axis travel | 2350 | mm |
Y-axis travel | 3050 | mm |
Z-axis travel | 240 | mm |
X,Y positioning accuracy | ±0.05/1000mm | mm |
X,Y repeat positioning accuracy | ±0.03/1000mm | mm |
Acceleration | 1G | |
Max running speed | 80 | m/min |
Rear chuck max rotating speed | 100 | rpm |
Tailing length | ≥90（will have little difference according to different tubes） | mm |
Table max load | 900 | kg |
Machine size (length x width x height ) | 7600×3500×1700（include rotary ） | mm |
Laser power | 1500 | w |
Control system | Fscut | |
Total power | 16 | Kw |
Machine voltage | 380v/50Hz |
| Laser source | Raycus BWT MAX |
| laser head | Raytools WSX |
| Machine size | 1500*3000mm 2000*4000mm 2500*6000mm etc |
| … | … |
Multi-functions, cost saving-it can not just cut tube and plate, can also save the occuppied space.
Independent electricity control cabinet-protect the wire from shaking caused by machine working.
Heavy machine base-it can load heavy materials with 2t weight.
Q235 is selected as the welding motherboard- To ensure the stability and deformation of the bed.
 | 24/7 online after sales service! |
| Complete quality control process! |
| OEM&Customization! |
| Welcome to visit our company! |
