XK-6022T
Xunke
Cutting
Metal
Metal processing Metal Tube/pipe processing

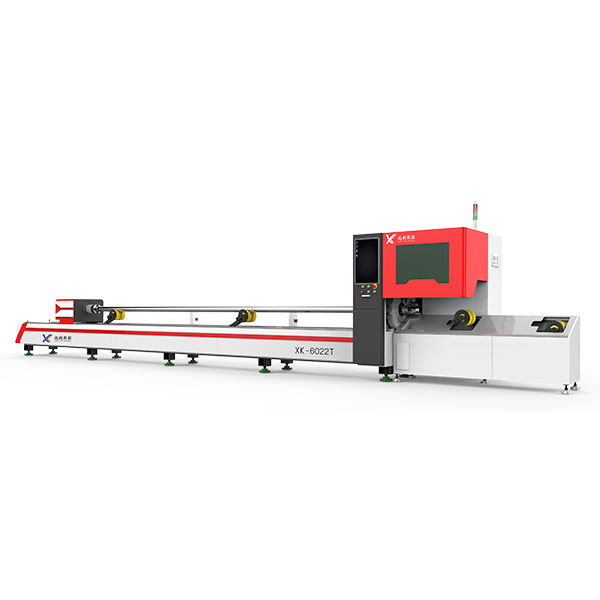

XK-6022T Fiber Laser Tube Cutting Machine
Model | FLT-6022T | unit |
Tube cutting size | roundΦ16-φ220,Square tube Side length≤220,Rectangular tube diagonal≤220,L≤6500; | mm |
X aixs distance | 220 | mm |
Y aixs distance | 6900 | mm |
Z aixs distance | 120 | mm |
X、Y aixs positioning accuracy | ±0.05/1000mm | mm |
X、Y aixs repeat positioning accuracy | ±0.03/1000mm | mm |
acceleration | 1G | m/s² |
X、Y aixs Max moving speed | 70 | m/min |
Chunk Max rotary speed | 100 | r/min |
Tailing length | ≥90(according to tube maybe different) | mm |
Machine size | About 8900×1700×1300 | mm |
Laser power | 1000-3000 | w |
Control system | Cyp-tube(FSCUT3000S) | |
Power consumption | 16-26 | Kw |
Electric | 380V/50Hz | V |
Intelligent pipe cutting system. Foo lproof processing method can be completed with a single key operation, with its own pipe material library collection of a variety of pipe processing technology; can complete the precision cutting of a variety of difficult processes such as perforation, coherent line, cutting.
High precision. According to the speed and power parameters set by the operator, the laser power can be precisely adjusted to ensure the cutting accuracy.
Wide range of application. Suitable for a variety of metal pipe processing: waist round pipe, round pipe, giant pipe, square pipe, I-beam, channel steel, D-shaped pipe, shaped pipe, etc.
Small investment, high return. Easy installation, fast production speed; save floor space to improve resource utilization rate and reduce production cost.
