1. Linear guide rail, large load capacity
2. German-made double-nut ball screw, high precision
3. Power off protection function
Availability: | |
---|---|

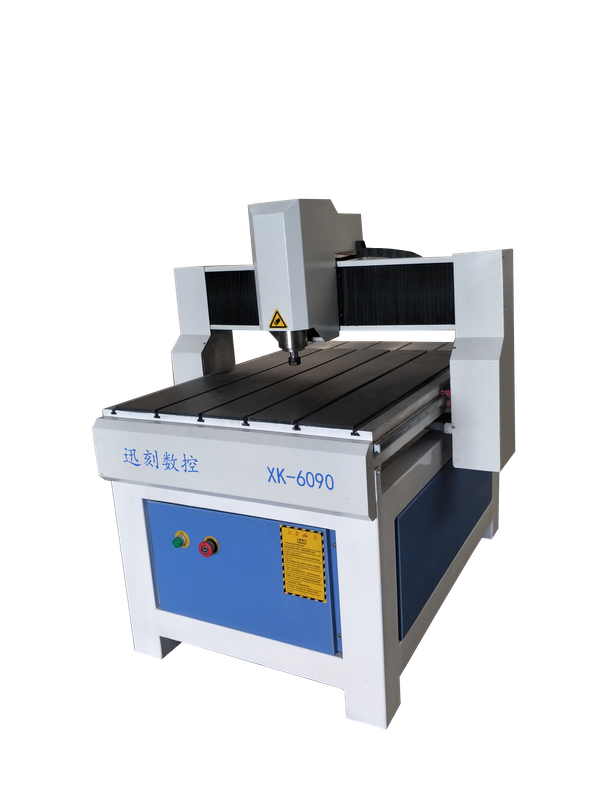

xk 6090
Xunke
Cutting Engraving
Acrylic Wood
Advertising industry
The 6090 CNC Router for Hobby Interest is a type of small hobby CNC router kits for home shop, which is equipped with a 4th axis rotary table for 2D/3D machining in home business and small business, home shop and small shop, the small home CNC machine is widely used for woodworking, sign making, mold making, arts and crafts.
Inverter

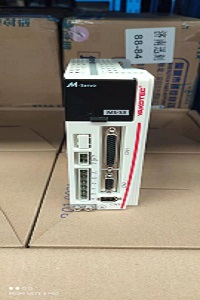

Drive
Rack
Motor
No. | model | parameter | Unit | |
1. | Working area | 2500x1300x200 | mm | |
2. | X axis | 1300 | mm | |
3. | Y axis | 2500 | mm | |
4. | Z axis | 200 | mm | |
5. | X,Y positioning accuracy | ±0.05/1000mm | mm | |
6. | X,Y repeat positioning accuracy | ±0.03/1000mm | mm | |
7. | Max running speed | 25 | m/min | |
8. | Weight | 2500 | Kg | |
9. | Table max load | 400 | Kg | |
10. | Machine size(LxWxH) | 3200×2050×1750 | mm | |
11. | Control system | NC studio | ||
12. | Whole machine power | ≥4.5 | Kw | |
13. | Voltage | 380v/220v 50HZ |
Spindle | 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, et |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Aluminum profile and T-slot Vacuum table |
Motor | step motor Leadshine motor Hybrid servo motor Servo moto |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Extra parts | Dust collector two or multi-spindles |
1. Advanced Control System: 6090 CNC router adopts NC Studio control systen, Mach3 or advanced DSP control system
2. Large Memory and Perfect Data Transmission: The desktop mini CNC router adopts Large internal memory of 32M is enough to simultaneously store more than 30 processing files which can be read freely.
3. Powerful Compatibility: it is compatible with CAD/CAM software like Type3, Artcam.
4. Intelligent and Humanized Design: The small size 6090 CNC router is able to continue engraving when the electricity is cut off or the tool is broken.Intelligent control of spindle makes the desktop CNC router able to auto-start and auto-stop, which is more safely, convenient and power-saving.
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
The 6090 CNC Router for Hobby Interest is a type of small hobby CNC router kits for home shop, which is equipped with a 4th axis rotary table for 2D/3D machining in home business and small business, home shop and small shop, the small home CNC machine is widely used for woodworking, sign making, mold making, arts and crafts.
