XK-F3
Xunke
Cutting Engraving
Acrylic Wood Other
Woodworking industry Advertising industry Furniture manufacturing Stone processing industry

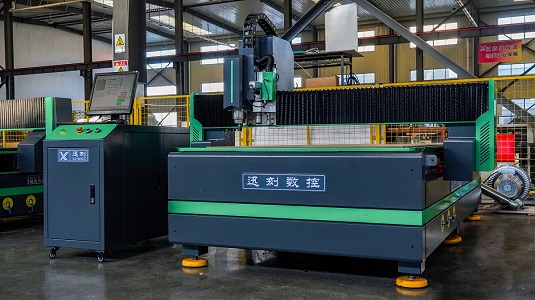

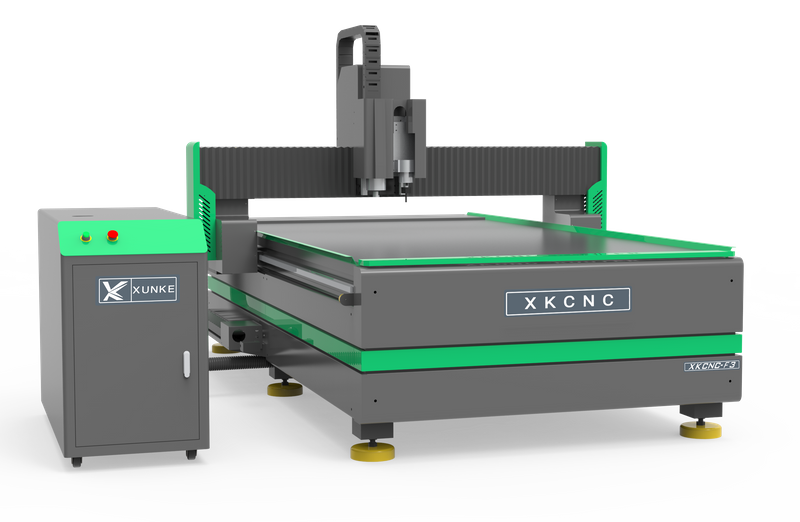

XK-F3 CNC Router with Vibration Knife And CCD Camera
Xunke F3 cnc router is a kind of multifuctional cnc router, it can do wood carving and PVC, MDF, acrylic cutting, it can also cut soft materials like kt board, foam.
The machine body is equipped with T-Slot, which can effectively fix the cutting parts.
Heavy machine body ensures stable operation of the machine.
The guide rail of the machine is placed in parallel with the rack and is equipped with a servo motor to ensure smooth work and work efficiency.
The special gantry design makes the rack and rail of X axis embedded in the gantry, so as to ensure the smooth operation of the machine and ensure the accuracy. Taiwan TBI screw is chosen in Z Axis, ensuring cutting accuracy.
Spindle and Vibration knife

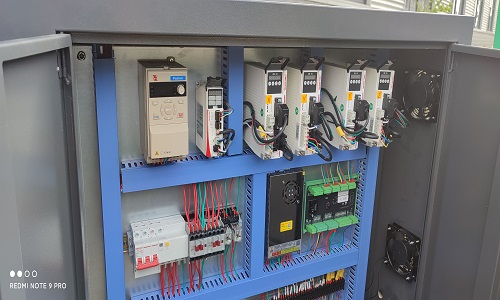

Electricity cabinet

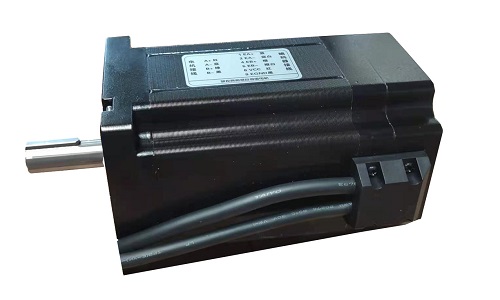

Hybrid servo motor

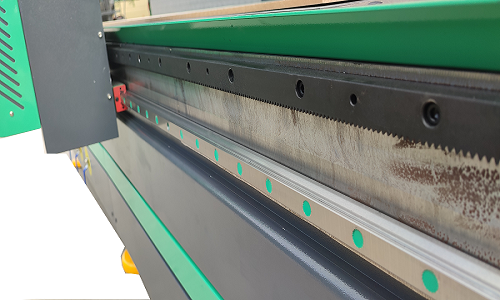

Guide rail and rack
Model | XKCNC-F3 | Inverter | Folinn inverter |
Machine size | 2200*3500*1500mm | Drive | Yako S3 |
Working area | 1300*2500*200mm | System | Advanced edge patrol system |
Gantry | Cast iron Gantry | Motor | S3 servo motor |
Spindle power | 3.2 kw water cooling | Platform | Vacuum table+T-slot |
Speed | 24000 rmp | Cabinet | Industrial class large anti-interference cabinet |
Drving mode | X, Y axis:Hiwin guide and rack Z aixs: TBI screw ball | Voltage | 220V/380V |
Rail | 20 linear rail | accuracy | ±0.02mm |
Warranty | 1 year | Code | G Code(*.nc.*.mmg.*.u00,etc.),eng |
Software | CAD/CAM(Window98/XP/7/8/10) | ||
Application | Advertising industry |
Spindle | Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, etc |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Vacuum pump | Water circulation |
Motor | step motor Leadshine motor Hybrid servo motor Servo motor |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
Machine can be calibrated easily, can identify JPG and other picture formats, shaped cutting and engraving integrated machine
Simple suction clamp integrated platform
Weighted thick bed structure
Add CCD industrial camera, can automatically fixed-point edge patrol engraving machine
MDF Cutting
Wood Carving
LED Words
Acrylic Cutting
Wooden furniture
Wooden furniture
Foam
Stone
PVC
KT Boards
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
