XK-S6
Xunke
Cutting Engraving
Metal Acrylic Wood Stone Other
Metal processing Woodworking industry Furniture manufacturing Stone processing industry

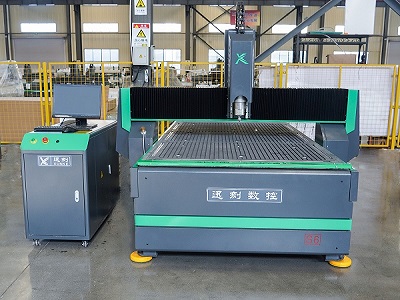

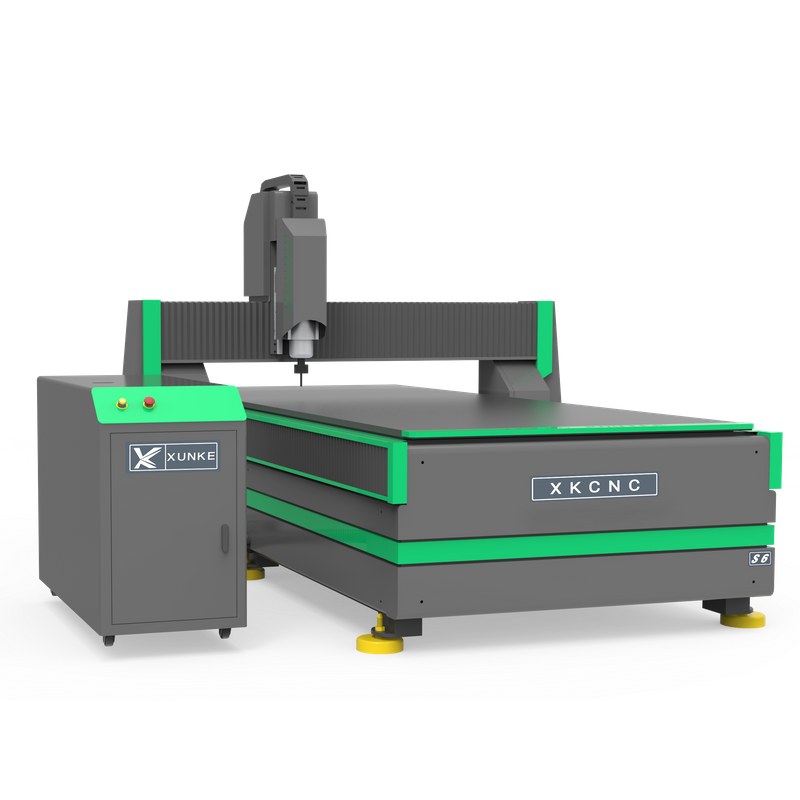

XK-S6 CNC Router
S6 CNC ROUTER
Xunke S6 cnc router is a precision processing machine, mainly for the advertising industry mini word processing.
The machine body is equipped with vacuum table, which can effectively fix the small cutting parts.
Heavy machine body ensures stable operation of the machine.
The guide rail of the machine is placed in parallel with the rack and is equipped with a servo motor to ensure smooth work and work efficiency.
The special gantry design makes the rack and rail of X axis embedded in the gantry, so as to ensure the smooth operation of the machine and ensure the accuracy. Taiwan TBI screw is chosen in Z Axis, ensuring cutting accuracy.

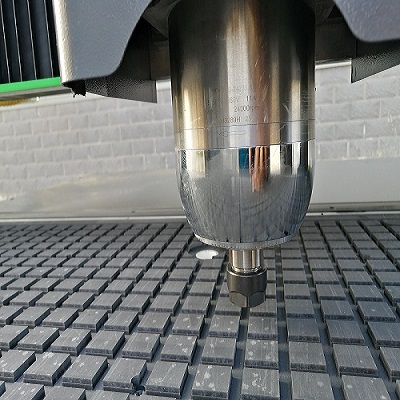

5.5kw spindle

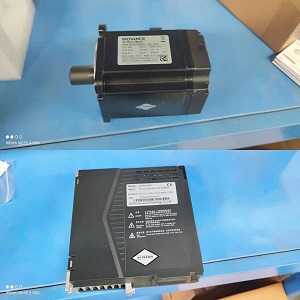

Servo motor and drive
Vacuum table

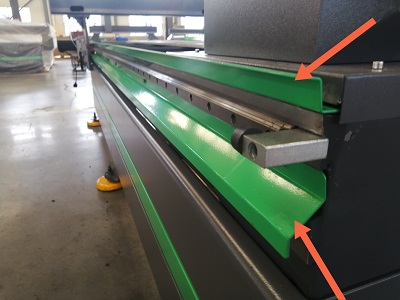

Guide rail and rack
Name | Description |
Model | XK-S6 |
Working size | 1300×2500×200mm |
Spindle | 5.5 kw constant power spindle |
Motor | servo motor |
Control system | Chengdu DHTN control system |
Driven system | X, Y axis high precision grinding white rack drive, Z axis Taiwan TBI ball screw |
Working table | Intelligent protection of the work surface |
Machine bed | Channel steel structure |
Max speed | ≥15m/min |
Spindle speed | 6000-24000rpm/min |
Voltage | 380V/220v 50Hz/60HZ |
Software | Wentai/Jingdiao |
Packing size | 3200*2250*1830mm |
Lubrication system | Automatic oil lubrication system |
G.W. | 1500KG |
Spindle | Water cooling spindle Air cooling spindle 4.5kw, 5.5kw, 6kw, 7.2kw, 9kw, etc |
Dust collector | Single bag Double bags 2.2kw, 7.5kw, etc |
Machine table | Vacuum table Aluminum profile and T-slot |
Motor | step motor Leadshine motor Hybrid servo motor Servo motor |
Working Size | 1300*2500mm; 2000*4000mm; 2500*6000mm, etc |
5.5kw cooling spindle
Heavy machine body
Automatic oil lubrication system
Equipped with servo motor and reducer
Vacuum table is used to fix small finished products togother with T-slot table
Rack and rails are placed in parallel to increase the contact area with the gantry, so that the machine runs more stable
MDF Cutting
Wood Carving
LED Words
Acrylic Cutting
Wooden furniture
Wooden furniture
Foam
Stone
PVC
KT Boards
24/7 online after sales service! |
Complete quality control process! |
OEM&Customization! |
Welcome to visit our company! |
